GES 400W Wind Turbine Kit - Turbine & MPPT Wind Controller

  • Sale
  • $319.00
  • Regular price $359.00
Tax included. Shipping calculated at checkout.


 GES 400W Wind Turbine Kit - Turbine & MPPT Wind Controller

Direct from the manufacturer, 2019 model - 400W Wind turbine and controller kit. A Perfect addition to any Off grid,Tiny Home & Marine solar power system.

Note: Your order does not include steel pipe bracket.

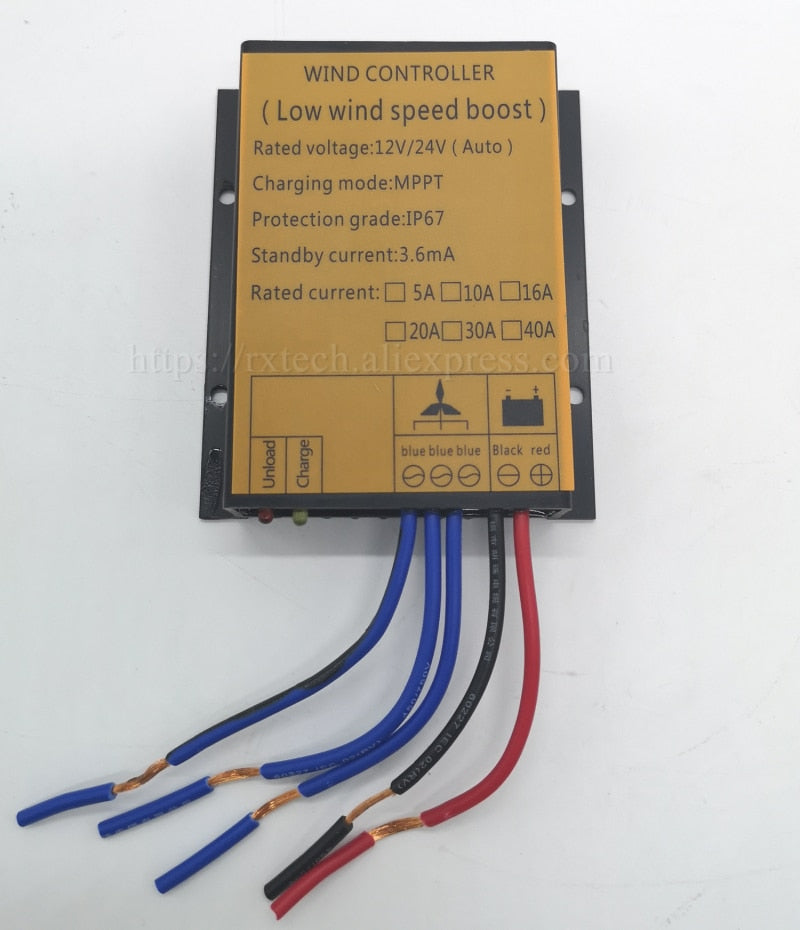

Includes an MPPT Controller :

Maximum power point tracking (MPPT) is a technique used commonly with wind turbines and PV solar systems to maximize power extraction under all conditions.



For 12V wind turbine, it begins to charge at 8-9V

For 24V wind turbine, it begins to charge at 17-18V



HTB1WwakIv9TBuNjy0Fcq6zeiFXaC



Introduction of wind turbine

1.low start up speed; high wind energy utilization; beautiful appearance; low vibration

2.Human friendly design, easy installation, maintenance and repair.

3.precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such advantages: high utilization of wind energy which contributes to the annual energy output.

4.the generators, adopting patented permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease resistance torque.Meanwhile, it makes the wind turbines match the generators quite well and increase its reliability



Techincal Data of wind turbine



Rated watt

400W

Rated voltage

12/24V

Start-up wind speed

2.0m/s

Rated wind speed

13m/s

Survival wind speed

50m/s

  Weight

9.5kg

Blade quantity

3/5/6 pieces

       Blade lengths

3 blades: 650mm

5 blades: 600mm

6 blades: 580mm

Blade material

Nylon fiber

Generator

Permanent magnet synchronous generator with

three-phase alternating current

Controller system

Electromagnetic/yaw

Regulating way

Automatic adjustment of wind angle

Working temperature

-40°C~80°C

Diagram



Note: Your order does not include steel pipe bracket




Drawn

3 blades size(1)

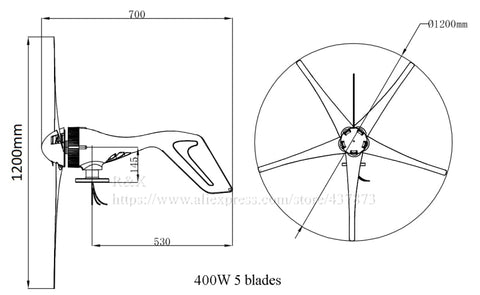

5 blade size



6 blades



Type: Wind Power Generator
Model Number: RX-400H5
is_customized: Yes
Shaft Material: Stainless Steel
Mounting Base: With Mounting Base
Brand Name: JSRX ZXX
Number of blades: 3/5/6PCS
Rated vote: 12V/24V
Start-up wind speed: 2m/s
Certification: CE/ROHS/ISO9001
