Waterboy 4HRH800

4” Helical Rotor Solar Pumping System



Our Waterboy 4HRH800 is our mid range 4″ Helical Rotor (HR) solar submersible pumping system that require a large amount of lift (up to 80m) and is perfect for mid range water supply solutions. This pump will give you between 9,320 – 14,4000 L  of water per day (based on 6 hours of sunlight).

----

Please Select System option from drop down menu.

----

Features

  • Brushless DC motor
    Integrated Soft start & MPPT
    Adjustable Speed & Timer Control
    All Stainless Steel
    High Efficiency

Benefits


  • Lift up to 90m
    Flow rate up to 13,060 L/day
    Simple installation
    Maintenance-free
    High reliability & life expectancy

Flow Rates

TDH
L/MIN
L/DAY
10
38
13,680
20
37
13,320
30
36
12,960
40
34
12,240
50
33
11,880
60
30
10,800
70
28
10,080
80
26
9,360
90
15
5,400

Accessories

6101 - Tank switch
6045NO - Pressure switch
6112 - 1.5" Double acting float value
6013 - 3" HR sacrificial anode

Drive Pack Package Includes:

  • 4” helical rotor submersible
    drive pack
  • controller, spare helical rotor
    and 3m motor lead.
    Max 100V DC.

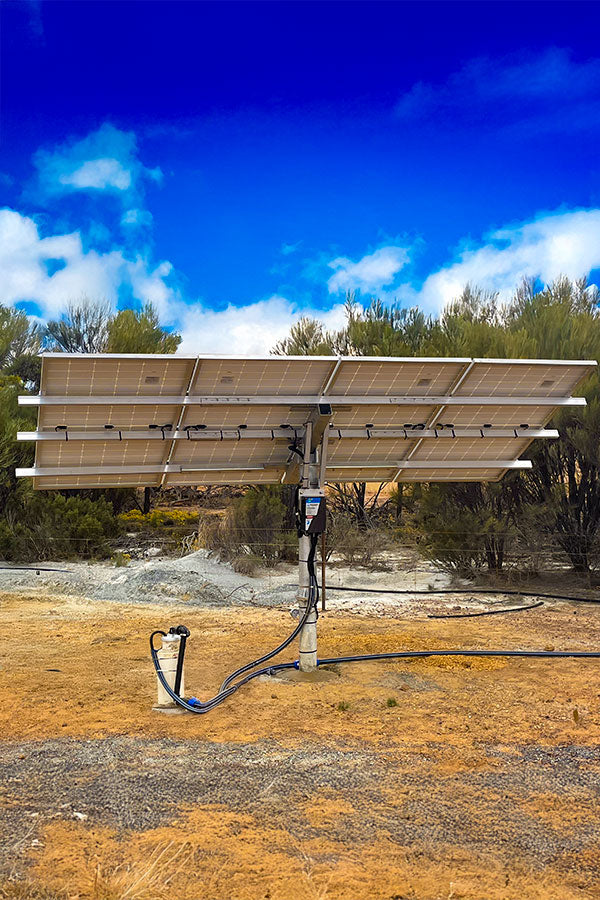

Complete Pumping System includes:

  • 4HRSS-H Pump, Motor & Controller

  • Heavy Duty
    Cyclone Rated Pole
    Mount Frame
  • 3x330w
    Mono Crystalline
    Solar Panels
  • 35m of Power Cable
  • Bore Cap or
    Dam Float
  • low water probe &
    safety cabling
    Low water protection
    (bore kit only)
