Waterboy
3HRH400
3” Helical Rotor Solar Pumping System
----
Please Select System option from drop down menu.
----
Our Waterboy 3HRH400 is our largest 3″ Helical Rotor (HR) solar pumping system and is designed for water supply solutions ranging from 1800 – 12,240 L per day depending on the TDH (0-80m).
Included in this system is 40m of cable as standard and everything you need to get your water pumping wherever the sun shines.
Features
- Brushless DC motor
Integrated Soft start & MPPT
Adjustable Speed & Timer Control
All Stainless Steel
High Efficiency
Benefits
-
Lift up to 80m
Flow rate up to 12,200 L/day
Simple installation
Maintenance-free
High reliability & life expectancy
Flow Rates
|
TDH
|
L/MIN
|
L/DAY
|
|---|---|---|
|
10
|
34
|
12,240
|
|
20
|
31
|
11,160
|
|
30
|
28
|
10,080
|
|
40
|
25
|
9,000
|
|
50
|
20
|
7,200
|
|
60
|
15
|
5,400
|
|
70
|
12
|
4,320
|
|
80
|
5
|
1,800
|
Accessories
6101 - Tank switch
6045NO - Pressure switch
6112 - 1.5" Double acting float value
6013 - 3" HR sacrificial anode
Drive Pack Package Includes:
- 3” helical rotor submersible
drive pack inc 210w motor
- controller, spare helical rotor
and 3m motor lead.
Max 100V DC.

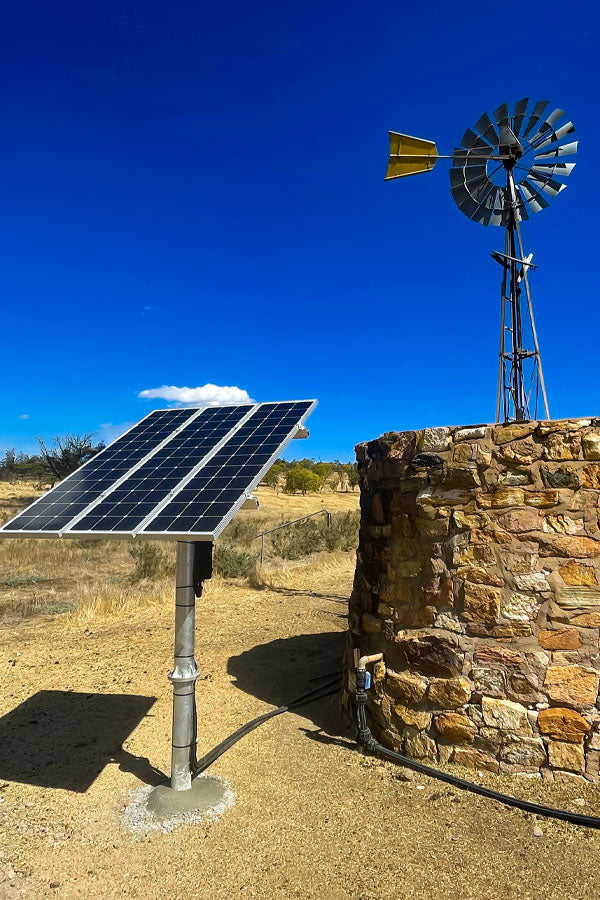

Complete Pumping System includes:
- 3HRHSS Pump, Motor,
and Controller
- Heavy Duty
Cyclone Rated Pole
Mount Frame
- 2x140w
Mono Crystalline
Solar Panels
- 35m of Power Cable
- Bore Cap or
Dam Float
- low water probe &
safety cabling
Low water protection
(bore kit only)
