Waterboy Solar Pump 3HR200 3” Helical Rotor - Max 40m head

Waterboy Solar Pump 3HR200 3” Helical Rotor - Max 40m head

  • Sale
  • $2,125.00
Tax included. Shipping calculated at checkout.

Contact us below for Inquiries or to Order - Be sure to include which product in the enquiry box. Finance now available! - Click the finance tab to see more.

Waterboy 3HR200

3” Helical Rotor Solar Pumping System

----

Please Select System option from drop down menu.

----

Our Waterboy 3HR200 is our smallest solar submersible pump. While being small it is still able to pump a good amount of water depending on your specifications.

Features

  • Brushless DC motor
    Integrated Soft start & MPPT
    Adjustable Speed & Timer Control
    All Stainless Steel
    High Efficiency

Benefits


  • Lift up to 40m
    Flow rate up to 7,200 L/day
    Simple installation
    Maintenance-free
    High reliability & life expectancy

Flow Rates

TDH
L/MIN
L/DAY
10
20
7,200
20
19
6,840
30
15
5,400
40
10
3,600



Accessories

6101 - Tank switch
6045NO - Pressure switch
6112 - 1.5" Double acting float value
6013 - 3" HR sacrificial anode

Drive Pack Package Includes:

  • 3” helical rotor submersible
    drive pack inc 210w motor
  • controller, spare helical rotor
    and 3m motor lead.
    Max 100V DC.

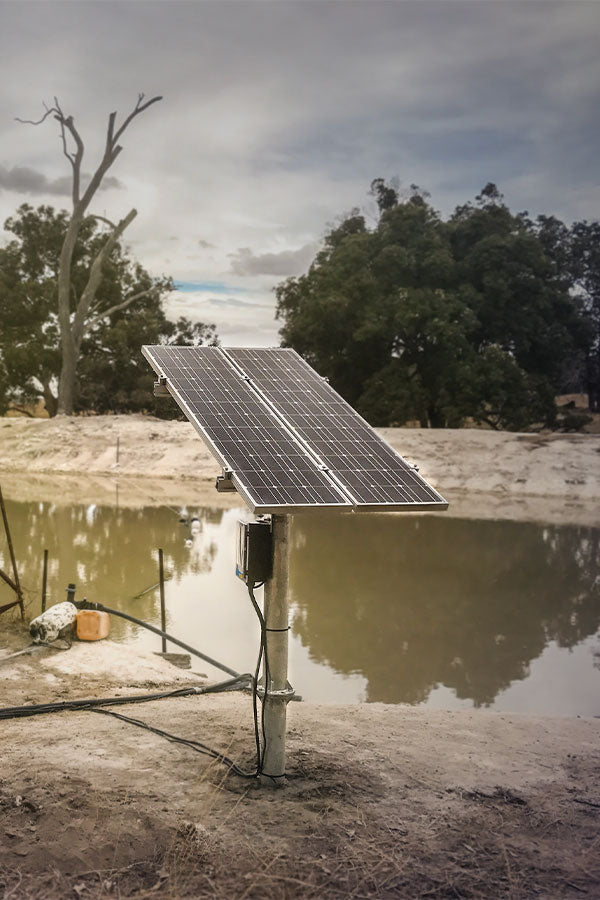

Complete Pumping System includes:

  • 3HRSS Pump, Motor,
    and Controller
  • Heavy Duty
    Cyclone Rated Pole
    Mount Frame
  • 2x140w
    Mono Crystalline
    Solar Panels
  • 35m of Power Cable
  • Bore Cap or
    Dam Float
  • low water probe &
    safety cabling
    Low water protection
    (bore kit only)
