Certification: CE
Certification: FCC
Origin: CN(Origin)
Model Number: S4-600W
is_customized: Yes
Type: Wind Power Generator
Commodity: 5 blades wind turbine
Rated Power: 600W
Rated Voltage: 12V or 24VAC
Rotor Diameter: 1700mm
Rated Rotate Speed: 400r/min
Start Wind Speed: 2m/s
Rated Wind Speed: 8m/s
Cut-out Wind Speed: 50m/s
Life-span: 20 years

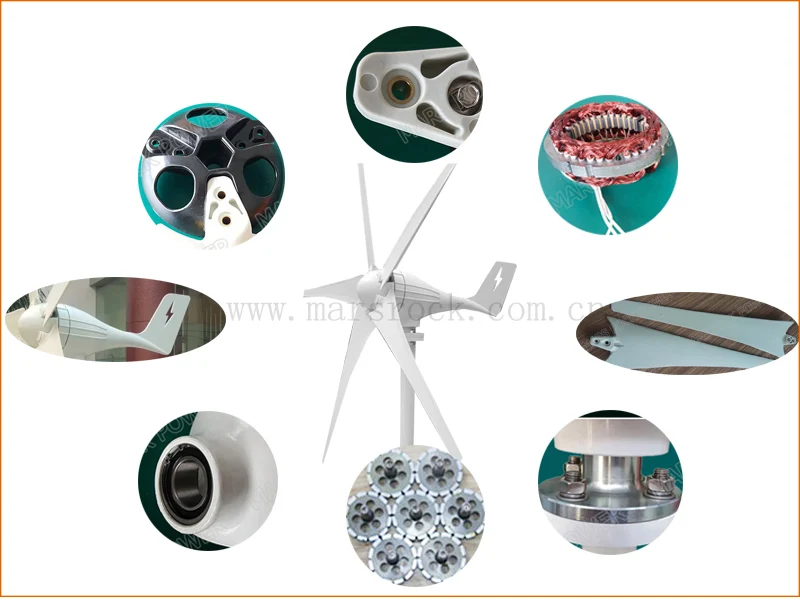

Product Features
1. 2m/s low wind speed starts the wind turbine generator.
This is the most obvious advange of this wind generator in all of same level product on the market which make high wind energy utilization rate.
2. Three phase AC output
Three phase output can make wind turbine transfer more wind power to electricity. 12V or 24V AC for customers' choise for their system.
3. Low fault and strong ability to resist the Typhoon
Fan adopts the unique design of the fuselage shock smooth operation, no noise, the blades with nylon composite materials manufacturing and become, with the optimization of aerodynamic design and structural design, start wind speed is low, high wind energy utilization coefficient, increase the power generating capacity. Stern rudder adopts the design of automatic yaw, stronger ability to resist the typhoon, safe and reliable operation.
4. Horizontal shaft function.
The wind turbine generator can adjust the angle automatically according to the wind directions by the horizontal shaft design.
5. 20-year long service life.
Due to the motor internal labyrinth design, external all fasteners are high strength stainless steel products, so it has better protection effect, can waterproof (IP65), prevent sand more effectively.
6. Structure is simple and reliable, beautiful appearance, strong mobility.
7. easy installation
Datasheet
Â
Power
Rated power
600W
600W
600W
600W
Maximum power
610W
610W
610W
610W
Rated voltage
12/24V
12/24V
12/24V
12/24V
SKU
3S4-600-D
5S4-600-D
3S4-600
5S4-600
Blades
Blades Length
63cm/25inch
65cm/26inch
Wheel Diameter
135cm/53inch
140cm/55inch
Blades material
High-strength nano-fiber glass fiber
reinforced plastic material design life 15 years
Optional colors
White(default)/Black/Blue/Red/Green/Orange/Yellow/mixed colors
Shape
Delta wing
Ordinary
Blades QTY
3 PCS
5 PCS
3 PCS
5 PCS
Wind
Start-up
2m/s
1.8m/s
2m/s
1.8m/s
4.5mph
4mph
4.5mph
4mph
Rated speed
11m/s
10m/s
11m/s
10m/s
25mph
22mph
25mph
22mph
Survival speed
48m/s
45m/s
48m/s
45m/s
107mph
100mph
107mph
100mph
Generator
Type
3 phase permanent magnet synchronous(NdFeB) AC generator
Case
Die-casting aluminum
Control system
Electromagnet
Speed regulation
Automatically adjust windward direction
Operation
-40°C- + 80°C
Connector
Hoop(default), Flange to connect with tower pole
Design life
20 Years
Suggest
Cables
Copper 3 core wind AC cable, waterproof and UV resistant
Tower Pole
6 meter hight with Steel cable
Others
Approved
CE, ROHS, FCC, ISO, BIWEI
SKU
3S4-600-D
5S4-600-D
3S4-600
5S4-600
G.W
10KGS
10.5KGS
10KGS
10.5KGS
