3.0-168 Workhorse Submersible Solar Pump
We are excited to welcome the Workhorse range of Hybrid Solar pumps. We have over a decade of experience in the pumping industry specializing in Solar pumping, in this time we have gathered an intimate knowledge of all things Solar pumping. Our goal is to supply you with quality hardware that will go the distance, which is why we have developed our very own Workhorse series. The Workhorse range of pumps start where our DC range finishes, we use our DC Solar pumps for smaller domestic purposes such as replacing a windmill, pumping modest water from a bore/dam/creek etc. The Workhorse range is for when you require larger volumes of water or have a large head height where extra power is required. The most efficient way to do this is by Solarizing an AC pump which is what we’ve done pairing a top shelf AC Workhorse pump with one of our Pump drive inverters. The pump drive inverter brings in your Solar power and converts it to 240v for the pump as well as having low water and high water inputs and a very handy feature an AC input allowing you to connect either a generator or mains if required (even if you don’t need a generator having an input can be handy in case of emergency such as a bush fire where Solar doesn’t work well).
Always refer to the maximum head and flow as per the flow chart
| Total Head Pressure (Metres) | Litres Per Hour | Litres Per Day With 6 Panels |
|---|---|---|
| 28 | 3000 | 18000 |
| 53 | 2700 | 16200 |
| 76 | 2400 | 14400 |
| 97 | 2100 | 12600 |
| 25 | 5500 | 33000 |
| 116 | 1800 | 10800 |
| 132 | 1500 | 9000 |
| 143 | 1200 | 7200 |
Package includes:
- AC Submersible Multistage Pump model 4SP2-28
- Solar Pump Inverter drive with AC back up (2.2kW model)
- 10m Solar Cable with Connectors fitted
- Solar DC isolator
- Instruction Manual and Quick Connection guide
- Pressure switch if you’re filling a tank that is some distance from
where you’re pumping from. The switch that comes with the system is wired
whereas there is an option to purchase a mechanic pressure switch that isn’t
wired to the tank.
Optional extras:
- Extra cable. Pump comes with 3 metres of cable on it if you need more calculate the distance from where you’re pumping from to where you will mount the controller. Maximum 100 metres extra cable for this pump.
- JA 460w Solar Panels x 6
- Clenergy 6 Panel Stand with pole for easy installation
- Railing/connectors take all the hard work out of building your own
stand, they connect to the solar panels and bolt straight onto your own
stand - Pump Float – if you’re using this in a dam or a river then a pump float is a convenient pump mounting option.
- You can find these extras in Pump accessories – Bore cap, stainless steel hanging cable and more.
Pump Model 4SP 2/28 Specs:
- Single Phase 240V AC 50Hz
- Power: 1.5kW
- Max Flow Rate: 3.0m3/hr or 3,000 litres per hour (at minimum head height)
- Max Head Height: 168m (where flow stops – see above images for head and flow ranges)
- Minimum recommended head height* at 50Hz: 28m (lower minimum head if pump RPM is reduced)
- Unit Weight: 18.9kg
- Max Diameter: 101mm (4″)
- Total Length 1594mm
- Outlet: 1.25″ BSP
- Motor High quality stainless steel 304
- Pump Head: Stainless steel 304 -casing and impeller
Remote Control Unit – Brand New Addition
For the first time, Commodore is providing the option of remote control monitoring for our Workhorse range of pumps. What does this mean for you?
- Users can turn their pump on or off from the click of a button on their phone or computer
- Users have full access to real time data, and historical data such as solar input, temperature and AC output frequency – please see the photo attached above
- Commodore can provide comprehensive advice and guidance for any questions users have about their solar pumping system
This is an absolute gamechanger at Commodore, and for only an additional $480, Australian’s now have access to some of the best in customer usability and comprehensive performance data.

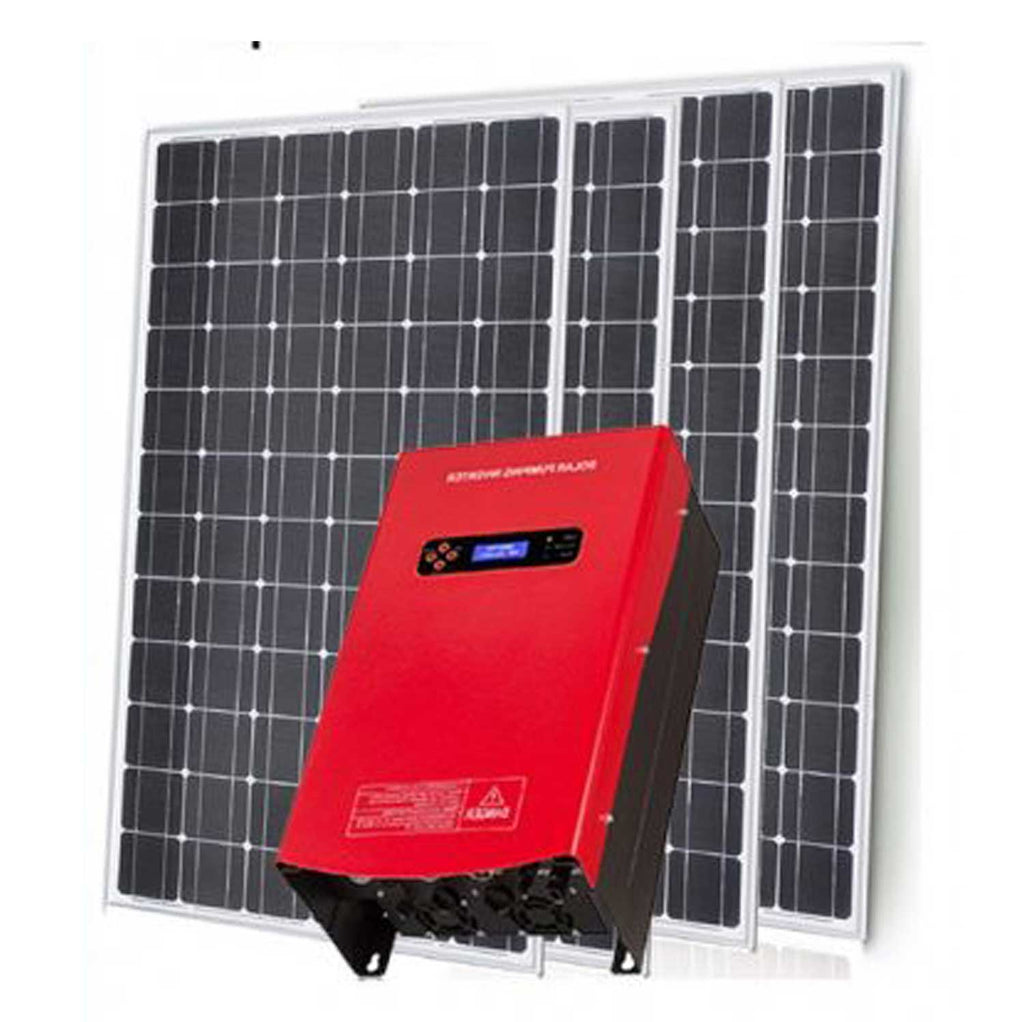

Solar Pump Drive Range Features:
- Dual operating modes:
- Solar only mode Automatic operation with sunlight, adjusting flow to match available solar power, where a minimum running speed / min flow rate can also be set if required.
- 24/7 operation mode power with Solar during the day & run with Mains overnight.
- Mains / Generator Input: Single Phase AC 240V 15A (run directly from mains power or a generator)
- Maximum Solar Array Open Circuit Voltage (VOC): 450V
- Full protections and automatic operation including low water protection (both low current and water level sensors), compatible with pressure switches and tank level sensors
- LCD display screen with running status and info, including power input / output, frequency / speed, and error history.
- Overload / Stalled motor protection
Premium JA 460w Solar panels
JA are one of the biggest Solar panel manufacturers on the planet there is a reason for that, their quality is top shelf, which is why we match them with our Commodore Solar pumps and Off grid systems. These high watt rated panels feature an excellent 12-year warranty for materials and processing, and a 25-year warranty for linear power output. The panels are measured at the following voltages:
- Power: 460w
- Open Circuit: 50V
- Maximum Power: 42.13V
- Short Circuit Current: 11.45
Warranty
Workhorse Pumps come with a 2 year warranty. Commodore Pump Drive comes with a 2 year warranty. If your item is found to be defective within the warranty period we will replace the defective part free of charge. You are welcome to send it back and our factory trained staff will carry out the repair for you free of charge within the warranty period. Repairs outside warranty period available at reasonable cost, shipping is cost of buyer. Consumables, cables, leads, etc.. are not covered by warranty, negligence or misuse is a warranty exclusion. Commodore is not responsible for any direct or indirect expenses or losses related to warranty or non warranty.
